Description
A new, high-performance standard for belt-driven analog turntables

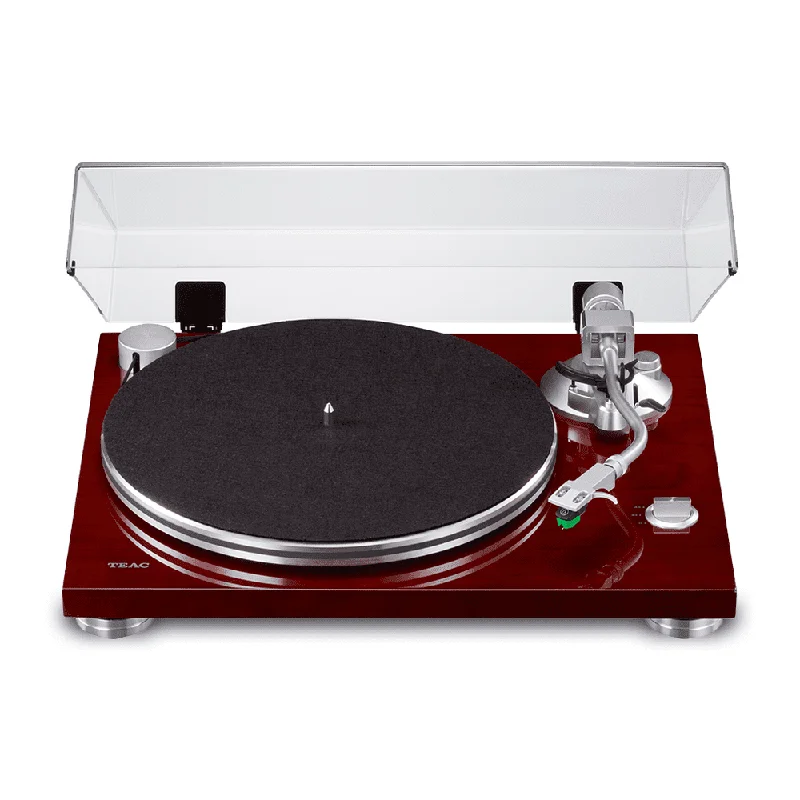

The TN-3B is a stylish, sleek-looking belt-driven turntable with a built-in MM-type PHONO EQ amplifier and USB digital output.
It employs a new tonearm with knife-edge, pivot-point bearings, co-developed with SAEC, the high-end tonearm manufacturer, for superlative stability and resolution.
The belt-drive mechanism, meanwhile, helps mitigate any unwanted cogging effects (ie fine pulsing) from the operation of the motor, to ensure a precise and smooth platter rotation.
The TN-3B also employs a high-precision NJM8080 op-amp in its in-built Phono EQ amplifier, allowing the user to enjoy the sound of their vinyl records with low distortion and in high quality. In addition, a built-in Analog-to-Digital converter and USB port allow users to digitise their vinyl libraries on their PC/Mac.
The TN-3B delivers a natural and well-balanced sound quality and is quick and easy to set up and start enjoying. We believe it sets a new standard that will satisfy the needs of both audiophiles and ardent record collectors.
Features
- 2-speed, belt-drive turntable offering 33-1/3 and 45 rpm speeds
- Knife-edge, pivot-point tonearm designed by high-end tonearm manufacturer SAEC
- Static-balanced, S-shaped tone-arm with pre-installed audio-technica AT-VM95E MM cartridge
- Die-cast aluminium platter
- USB digital output for digital archiving on PC/Mac
- PHONO/LINE analog outputs (switchable)
- Built-in PHONO EQ amplifier, compatible with MM-type cartridges
- Hi-fi grade NJM8080 op-amp used in PHONO EQ stage
Technical Specifications
| Turntable Type | Belt-Drive |
| Motor | DC Motor |
| Rotation Speed | 33-1/3rpm, 45rpm |
| Wow and flutters | Less than 0.1 |
| Signal-to-Noise ratio | 67dB (A-weighted,20KHz LPF) |
| Platter | Die-cast aluminium, 30cm diameter |
| Tonearm Type | Static-balanced S-shape with knife-edge bearings |
| Effective tone-arm length | 223mm |
| Anti-skating mechanism | Supported |
| Stylus pressure range | 0 to 5g |
| Compatible cartridge weight | 3.0g to 12g 14g to 23g (incl. head-shell) |
| Cartridge Type | VM-series (Moving Magnet-type) |
| Output voltage | 4.0mV (1kHz, 5cm/sec.) |
| Stylus pressure range | 1.8g to 2.2g (2.0 recommended) |
| Cartridge weight | 6.1g |
| Head-shell weight | 11g (incl. screws, nuts, and wires) |
| Stylus life | approx. 300 hours (depending on conditions) |
| Connectors | RCA output x 1 pair (gold-plated) |
| Output Voltage | PHONO EQ THRU: 4.0mV (1kHz, 5cm/sec.) PHONO EQ ON: 224mV (-13dBV) |
| USB Connection | USB B-type (FULL-SPEED) x 1 (DC 5V 500mA supply required) |
| Sampling frequency | 8k / 11.025k / 16 k/ 22.05k / 32k / 44.1k / 48kHz |
| Bit depth | 16-bit |
| Power | AC 100V to 240V, 50/60Hz |
| Power consumption | less than 1.5W |
| Standby power | less than 0.5W |
| GND terminal | Fitted |
| Operating temperature range | 5 to 35 |
| Overall dimensions | 420 x 117 x 356mm / 16.5 x 4.6 x 14.0 (dust cover closed) 420 x 381 x 402mm / 16.5 x 15.0 x 15.8 (dust cover opened) |
| Weight | approx.5.0Kg / 11.0 lbs. |
| Included accessories | Felt mat x1 EP adaptor x1 Counter-weight x1 Headshell (AT-VM95E pre-installed) x1 Platter x1 Dust cover x1 Rubber feet for dust cover x2 Hinges x2 RCA audio cable x1 AC Adapter (GPE053A-V120050) x1 Owners manual (incl. Warranty) x1 |
