Description

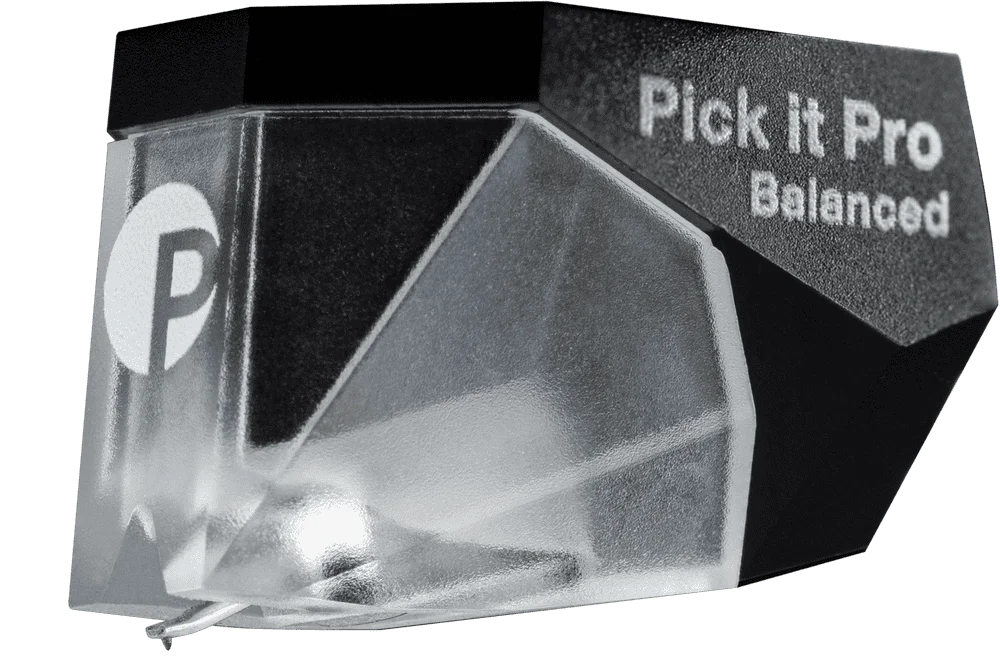

Pro-Ject Pick it PRO Balanced
Pro-Ject’s first true-balanced moving magnet cartridge opens up the world of balanced audio connections to a whole new price category.
The new Pick it PRO Balanced cartridge is a revised version of the Pick it PRO which allows you a ‘True Balanced’ signal transmission. Standard MM cartridges cannot be used with a symmetrical connection, as it would result in a difference between the left and right channel. The Pick it PRO Balanced doesn’t share the shielding pin with the ground, resulting in a cleaner and truly balanced signal transmission. It is the first moving magnet cartridge that can be used in a fully balanced phono setup!
The big advantage of a balanced connection is its ability to remove picked up noise and interferences. Pro-Ject’s ‘True Balanced’ cable range offers you the perfect cable companion to extend this balanced signal from your turntable to a balanced-compatible phono stage and amplifier.
Technical Specifications
| OUTPUT VOLTAGE | 4 mV |
| CHANNEL SEPARATION (@ 1000HZ) | 22 dB |
| FREQUENCY RESPONSE (20 – 20,000HZ) | ± 2 dB |
|
TRACKING ABILITY @ 315HZ AT RECOMMENDED TRACKING FORCE |
70 m |
| COMPLIANCE, DYNAMIC, LATERAL | 12 m |
| STYLUS TYPE | Tipped Elliptical |
| STYLUS TIP RADIUS (R/R) | 8 / 18 m |
| TRACKING FORCE RANGE | 1.8 – 2.2 g |
| RECOMMENDED TRACKING FORCE | 2.0 g |
| TRACKING ANGLE | 20° |
| INTERNAL IMPEDANCE | 750 |
| RECOMMENDED LOAD IMPEDANCE | 47000 |
| RECOMMENDED LOAD CAPACITANCE | 150 – 300 pF |
| CARTRIDGE WEIGHT | 7.2 g |
