Description

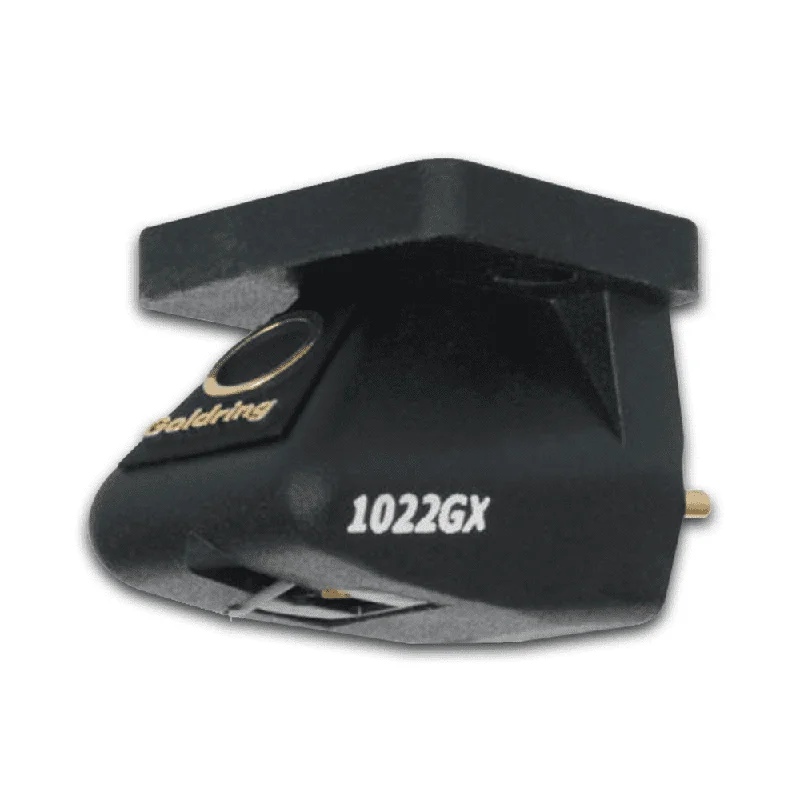

The 1022GX is recommended for the discerning listener. The diamond stylus is a Gyger-1 fine line-contact type, which provides increased resolution and ensures the maximum accuracy of musical reproduction.
Technical data
| Frequency Response | 20Hz-20kHz3dB |
| Channel Balance | 2dB @ 1kHz |
| Channel Separation | 25dB @ 1kHz |
| Sensitivity | 6.5mV1.5dB, 1kHz @ 5 cm/sec |
| Static Compliance | 24mm/N lat., 16mm/N vert |
| Equivalent tip mass | 0.45 mg |
| Vertical Tracking Angle | 24 |
| Stylus Radius | Vital PH |
| Stylus Type | Replaceable |
| Load Resistance | 47,000 Ohm |
| Load Capacitance | 150-200pF |
| Internal Inductance | 570 mH |
| Internal Resistance | 660 Ohm |
| Cartridge Weight | 6.3g |
| Fixing Centre | 12.7mm |
| Playing Weight | 1.7g nom. |
