Description
In 2016 the name Miracord was re-established in the high-end audio community. 3 years and 3 product launches later, the Miracord 60 is ready to continue the unique ELAC Audiophile Turntable Saga.

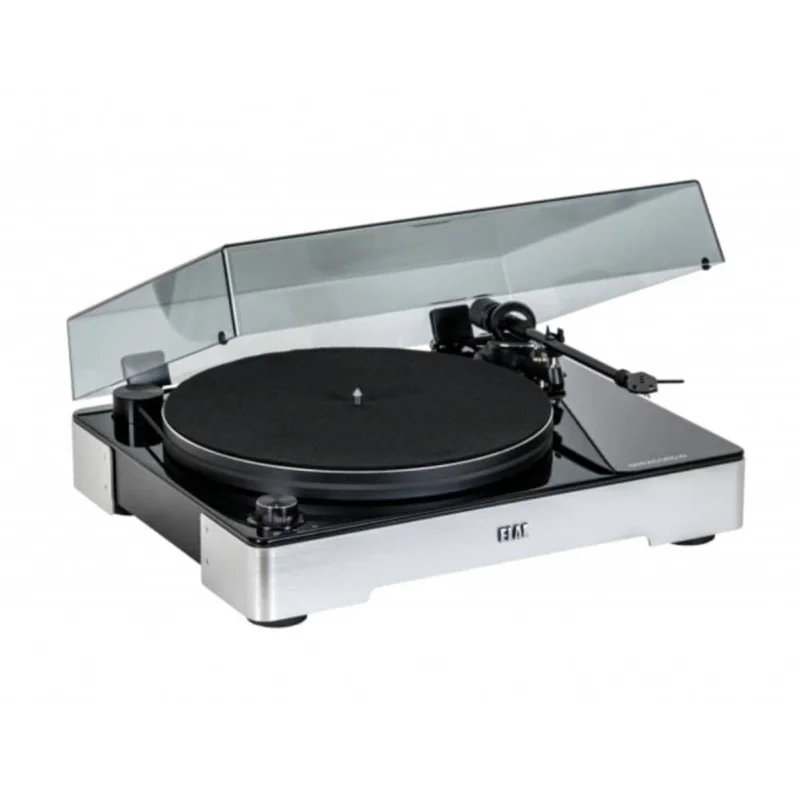

The Miracord 60 was designed to bring the world-renowned and eye-catching design of the successful Miracord 90 to a new class of ELAC turntables. The result is a turntable that does not deny its lineage while emphasizing its individuality. The new Miracord 60 embodies the meaning of smooth vinyl precision to perfection and timeless, elegant design.
Inert MDF chassis
The 12 lb (5.5 kg) MDF chassis rests on specially developed silicone feet that decouple the deck completely from the surface on which it is placed.
Advanced carbon-fibre tonearm
The newly developed tonearm made of carbon fibre forms a perfect symbiotic relationship with the drive mechanism.
Precision platter with minimal friction
The aluminium platter weighs almost 14 lbs (6.2 kg) and sits on a sub-platter whose hardened steel axis rotates on an 8 mm ruby ball for minimal friction. The axis is mounted using high-quality sintered bronze bearing bushings.
Isolated motor and sophisticated suspension
The motor is double-decoupled from the chassis and, therefore, from the tonearm. Along with the rubber damping, the suspensions employed use materials that have proven themselves in the development and manufacture of ELAC loudspeakers.
Specifications
TURNTABLE SECTION
- Drive System: Belt-drive
- Motor: DC Motor
- Selectable Speeds: 33 1/3 and 45 rpm
- Rotation Speed Variation: +/- 0.33%
- Wow and Flutter: < 0.12%
- Platter: Aluminum die-cast
TONEARM SECTION
- Type: Carbon fiber tube
- Overhang: 18.6mm
- Offset Angle: 25 degrees
- Anti-Skating Adjustment: 0..4
- Main Bearing: Stainless Steel
CONNECTOR: RCA pin jack
VOLTAGE: 100 to 240V AC /50/60Hz
POWER CONSUMPTION: 1.5 W (less than 0.5 W at standby)
