Description

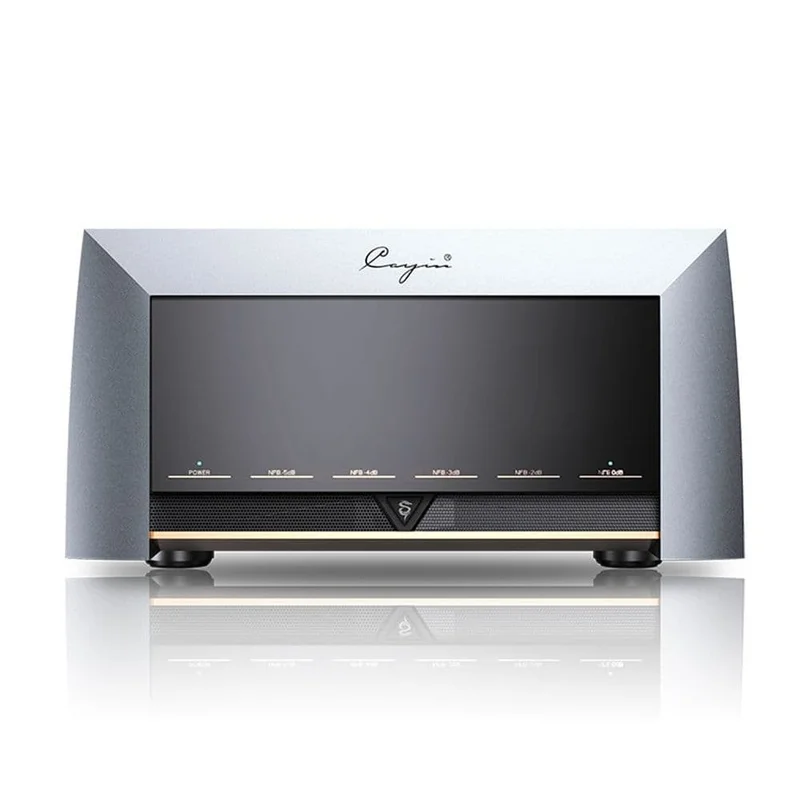

Cayin have been producing high quality, high value vacuum tube amplifier over the years, following the same tradition, Cayin now introduces the new reference M-845D Amplifier. This newly improved amplifier is equipped with multiple feedback selections to accommodate most pre-amplifier for effortless integration.
The M-845D sounds big, muscular and strong with real life presentation, beautiful decay and dimensional ease. There is a remarkable degree of detailed emotional intensity. With its power reserve that allows to drive hard driven speakers which generate a wide and deep soundstage and stable imaging, natural ability to convey the music.
Match Cayin M-845i Monoblock with M-11LS pre-amp for seamless integration.
Technical Specifications
| Model | M-845D |
| Frequency Response | 15Hz28kHz (-3dB) |
| Supply Voltage | 220V±5% 50Hz |
| S/N Ratio | 89dB |
| Dimension | 480mm×577mm×252mm(W×D×H) |
| Output Impedance | 4816 |
| Tube | 845×2300B×16SN7×3 |
| NFB. Selection | 0dB-2dB-3dB-4dB-5dB |
| Power Output | 60W |
| THD | 0.3%(1W/1kHz;5% Under Rated Power) |
| Power Consumption | <380w |
| Sensitivity | RCA:750mV; BALANCE:1500mV |
| Net Weight | 50kg |
| Input Terminals | BALANCERCA |
| Input Impedance | 100K |
