Description

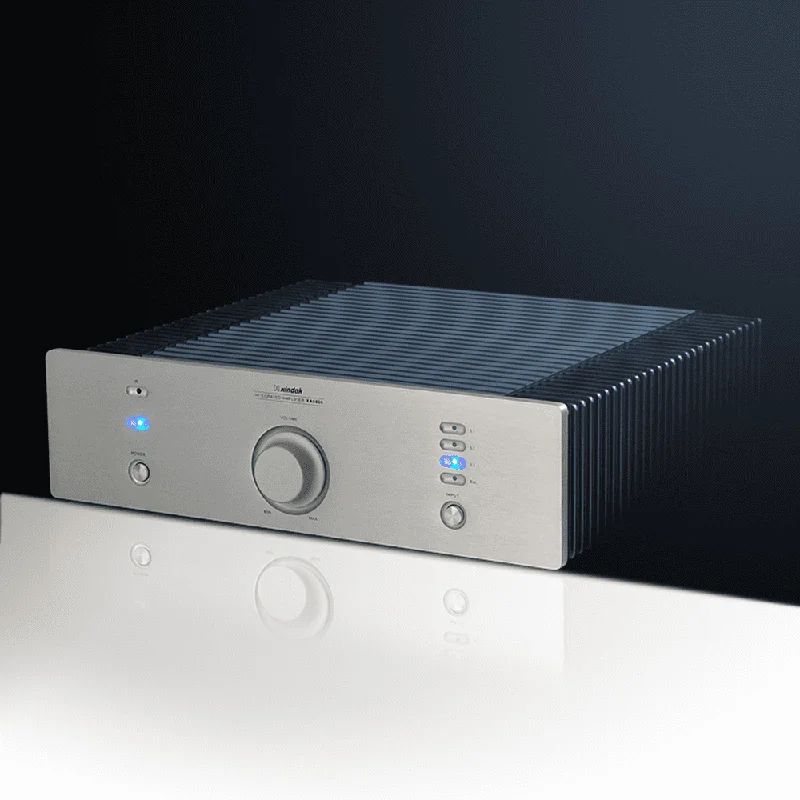

XA6800(08) is a stereo integrated amplifier, upgrade from XA6800, add some new functions.
It takes 3 pcs integrated operational amplifier as pre-amplification, with features of good linearity, small distortion, high resolution.
The power amplify circuit has the features of low non-linear distortion and transient intermodulation distortion, wide frequency response.
It takes fine-performance field-effect tube for voltage amplify stageoutput transistors are two pairs MJE15024/MJE15025.
Power supply: consist of a toroidal transformer with high-power and good-quality, two gold-seal rectifier bridge and 40000uF filtering electrolytic capacitor. And the power for left and right channel are completely independent. Iutput : 3*RCA1*XLR; Output: 2* Speaker. With RC, and full protection.
Its timbre same as old XA6800, better equilibrium sense, transparent; The whole audio band bright and natural.
Technical Specifications
| S/N Ratio | 93dB |
| THD | 0.03% |
| Input Impedance | 47K |
| Power Consumption | 280W |
| Power Consumption(Static State) | 150W |
| Frequency Response | 10Hz-100KHz |
| Input | 3 RCA, 1 XLR |
| Rated Output Power | 2*80W (8 ohm) |
| Remote Control | Yes |
| Net Weight | 20Kg |
| Dimensions (W*H*D) | 430mm x 430mm x 140mm |
Manufacturer Site
- Xindak
