Description

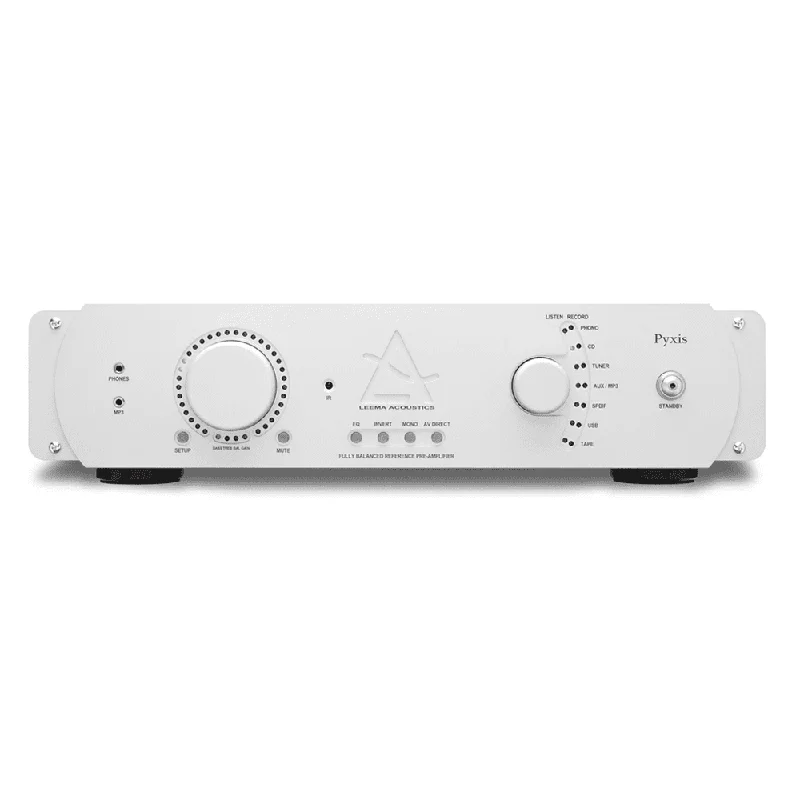

The Pyxis pre-amplifier is the heart of Leemas Reference Series, designed to offer absolute transparency with superior resolution and musicality. The Pyxis is without doubt a state-of-the-art performer. A generous range of features ensures that the Pyxis offers complete satisfaction.
Features include both single-ended and balanced analogue inputs and outputs, tone controls, USB digital connectivity for use with computers, on-board 24 bit 96 kHz DAC for digital sources, high performance headphone amplifier and an optional built-in, high quality MM / MC phono-stage.
Pyxis analogue signal path is fully balanced throughout. In many ways it is actually two complete pre-amplifiersone for each signal phase.
Pyxis features Leemas proprietary LIPS® control interface. LIPS® type 1 & 2 are both included, allowing Pyxis to integrate with home automation systems and other Leema components. Using LIPS® it is possible to feed any Leema power amplifier with a constant high-level audio signal and control the volume at the input stage of the power amplifier. This is achieved by using fly-by-wire control data from the Pyxis which ensures maximum signal-to-noise ratio and resolution of the audio signal, by running the audio interconnect cables at an unattenuated high-level.
Technical Specifications
| THD | 0.004% |
| Noise | <-100dB |
| Frequency Response | 5Hz – 100kHz (+0/-3 dB) |
| Balanced Inputs | 2 XLR |
| Un-Balanced Input | 5 RCA |
| Internal Phono-Amp | Optionl (MM & MC Input) |
| Tape Input | 1 |
| Tape Output | 2 |
| MP3 Inputs | 1 |
| USB | Yes (Bi-directional up to 48kHz sampling rate 16 bit) |
| S/PDIF Output | 1 (Co-axial) |
| S/PDIF Input | 1 (Co-axial) |
| Headphone Outputs | 1 |
| Pre-out Outputs | 1x Un-balanced (RCA) 1x Balanced (XLR) |
| LIPS® system | Master or Slave |
| Dimensions | 440 x 320 x 110mm |
| Carton Dimensions | 590 x 450 x 210mm |
| Mass | 10kg |
