DALI Opticon 1 MK2 Loudspeakers

Description

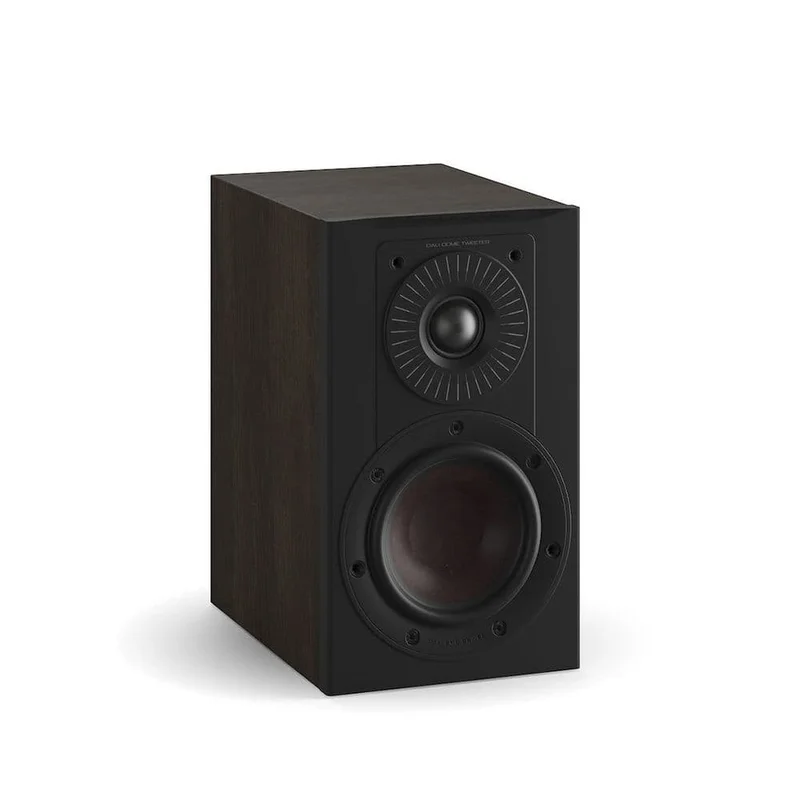

The OPTICON 1 MK2 is a compact stand mount speaker designed to be installed close to room boundaries or wall mounted in modest listening spaces. Its drivers comprise a 4¾ Wood Fibre diaphragm, SMC magnet bass/midrange unit and a newly designed 29mm soft dome tweeter derived from that employed in the CALLISTO series. The Dual Flare reflex loaded 5 Litre enclosure enables the OPTICON 1 MK2 to deliver remarkable bass performance for its size that integrates perfectly with the inherent midrange and high frequency quality of its drivers. The OPTICON 1 MK2 is supplied with a simple keyhole slot wall mounting bracket.

Features

Pasion for Detail
The OPTICON series has been at the heart of the DALI range for over five years and has brought exceptional DALI performance into the homes of countless music lovers and audiophiles. But the time has come for the OPTICON to benefit from some new ideas and technologies, and to be refreshed with a new aesthetic. Welcome to the DALI OPTICON MK2.

Effectively updating and improving such a well regarded high performance series as the OPTICON is a careful balancing act. How to enhance the existing engineering, aesthetics and performance without degrading or even eradicating the qualities that worked so well the first time around? The answers to that conundrum are numerous, and range from subtle revisions to more fundamental changes, but they have all been implemented the DALI way, with a continual focus on music reproduction, thoughtful design, stylish aesthetics, quality of manufacture and use of the latest technologies and ideas.

As with the original OPTICON series, an important element of the OPTICON MK2 is that it remains fully Danish in manufacture; built at our factory in Denmark from components either produced in-house, or sourced from the best specialist manufacturers locally and further afield.

Just like its predecessor, the OPTICON MK2 is a speaker series that majors on clear, undistorted, enjoyable and coherent audio; perfectly complementing music, radio, streaming, TV or movie sources. A speaker series that caters to every requirement with compact stand or wall mount options, slim to more substantial floor stand options, and a centre channel option too. The OPTICON MK2 series offers a speaker for every room and every occasion.

The OPTICON MK2 bass and midrange drivers were designed with a consistent focus on the DALI audio principles of low-loss, low distortion and low colouration. The ideal driver plays only what the amplifier requires, with nothing added and nothing subtracted, and at DALI we strive to design and manufacture drivers that approach the ideal as closely as possible.

Every component in each OPTICON MK2 bass/mid driver is carefully designed for its positive contribution towards ideal performance. The EPICON derived diaphragms are made from a mix of paper and wood fibre that ensures minimal break-up resonance and gives the diaphragms their distinctive colour. They are terminated by rubber surrounds chosen for their soft and very flexible mechanical properties that enable free movement with minimal low frequency damping. In any bass/mid driver, it is the magnet and voice-coil system that is best placed to control and damp diaphragm movement. The job of the surround is simply to dissipate, without resonance, the vibrational energy flowing outward in the diaphragm; the less it interferes with low frequency damping the better. The OPTICON MK2 bass and midrange driver chassis are manufactured in die-cast aluminium that provides extremely high rigidity and low resonance along with minimal extraneous influence on the internal magnet system. The mechanical design of the chassis is specifically engineered to provide minimal impedance to airflow while at the same time enabling extremely tight mechanical bonding with the speaker enclosures.

The OPTICON MK2 bass/mid driver magnet system consists of a large ferrite ring magnet surrounding a pole piece manufactured entirely of the unique DALI SMC material. The pole piece and the ferrite magnet are secured between soft iron front and back plates to create the appropriate magnetic field for the voice-coil.
