Charisma Audio Charm MC Cartridge

Description

Over more than 45 years experience in audio, Charisma Audio have collected the solid ideas which inspire the design and manufacture of our accessories. Using premium materials, these not only look attractive but also show striking performance.

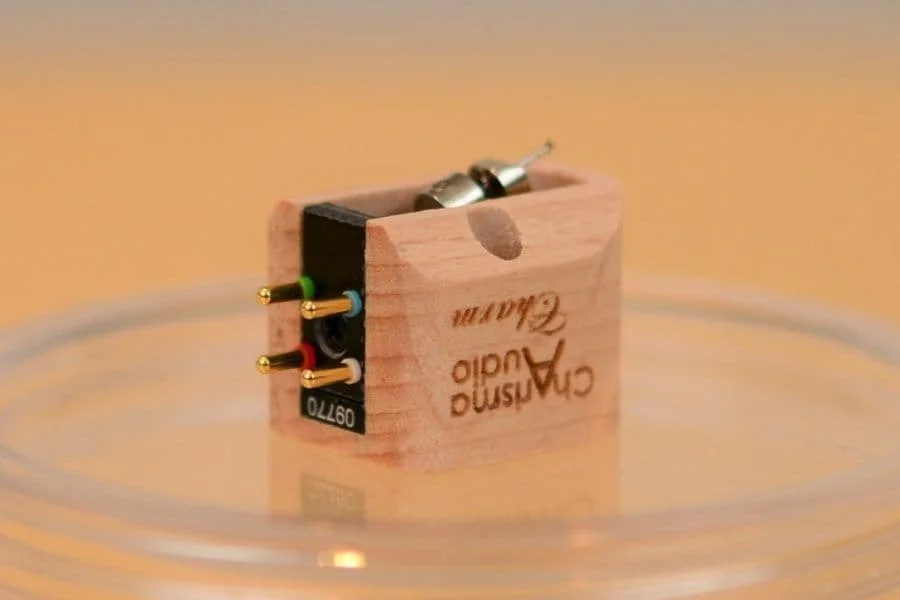

Charisma Audio Charm Moving Coil Cartridge

Aluminium cantilever, spherical diamond stylus, beach wood body.

Technical Specifications

• Cartridge Weight: 6.8 g

• Cartridge body: beech wood

• Cantilever: aluminum
• Stylus: spherical diamond
• Vertical Tracking Angle: 20 degrees
• Coil: pure iron cross-coil with pure copper
• Output Voltage: 0.25 mV at 3.54 cm/sec.
• Internal Impedance: 4 ohms
• Frequency Response: 2020,000 Hz ± 1 dB
• Channel Balance: better than 0.5 dB
• Channel Separation: better than 25 dB
• Dynamic Compliance: 10 um/mN
• Recommended Loading: 1001,000 ohms
• Recommended Tracking Force: 1.8 g ± 0.1 g
• Tracking Ability at 315 Hz / 2 g: 70 uM
• Recommended Tonearm Mass: medium
• Break-in Period: 30 hours
