Description

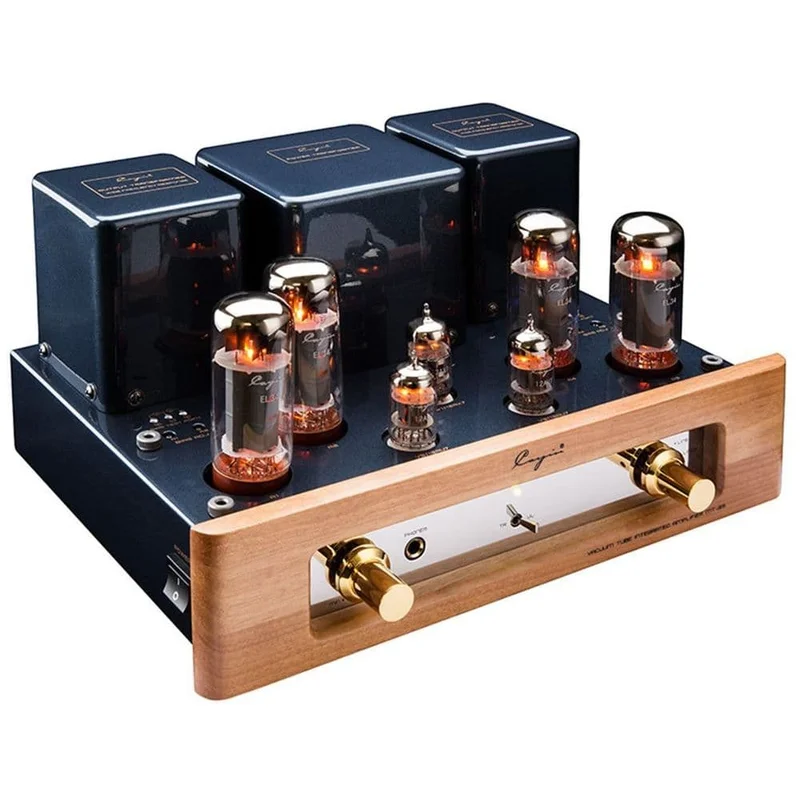

Finish : Gorgeous Real Wood Facia.
Hand-made construction with the finest point-to-point wiring.
Two EI output transformer with wide bandwidth are applied.
Special handmade low magnetic leakage toroidal power transformer.
1 x 12AX7 + 2 x 12AU7 for pre-amplifier session.
Fully matched EL34 x 4 vacuum tubes for power output.
Bias test point and regulators added on the top side.
Ultralinear/ Triode mode selection added.
Support headphone output.
High quality Japan ALPS potentiometer.
Equipped with easily-installed tube cover for protection.
Pure and soft sounds. 1 x 12AX7 + 2 x 12AU7 for Pre-Amplifier session. Fully matched EL34 x 4 vacuum tubes for power output.
High quality input socket with high quality spare parts, multiple signal input terminals.
Technical Specifications
| Power output RMS | 2 x 32W (Ultralinear Mode) |
| Frequency Response | 10Hz – 42kHz (-3dB> |
| Input Sensitivity | 260mV |
| Input Impedence | 100Kohms |
| Output Load Impedance | 4ohms, 8ohms selectable |
| THD+N | 1%, 1KHz |
| S/N Ratio | 89dB |
| Power Consumption | 260W |
| Dimension W x H x D | 330 x 180 x 272 mm |
