Description

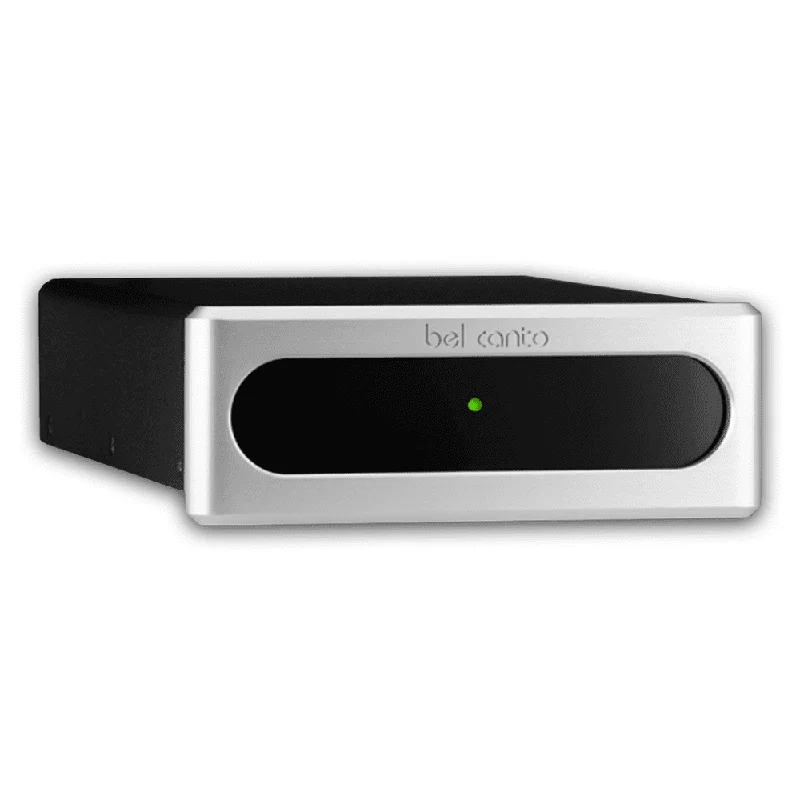

The PHONO preamp will unleash tremendous dynamics and resolution to your listening experience.
- Optimized two stage architecture
- Low noise 40dB input stage
- Custom discrete output stage with adjustable gain
- Precision RIAA network
- High drive output buffer
- Low noise multi-stage channel independent power supply
- Ground optimized PCB layout
Features
DSSA, Discreet Single Stage Amplifier
This is a very fast, low noise amplifier with a single-stage folded cascode architecture and over 500mA of peak current output capability. It maintains very low constant distortion levels through the audio band because of its high open-loop bandwidth. The DSSA module brings a further element of dynamic resolution and contrast to the e.One Phono. The vertical modular design permits a tight, efficient Printed Circuit Board (PCB) layout that combines the best of IC based and discrete component design.
Gain and Resistance Customization
The PHONO can work with a wide variety of cartridges by adjusting the dip switches for gain and resistance on the back of the unit.
Technical Specifications
| Bandwidth | 1Hz-50KHz |
| RIAA Accuracy | 20Hz-20KHz +/- 0.2 dB |
| Signal to Noise Ratio 40 dB gain | >80 dB A weighted, re 5mV RMS in |
| Distortion @ 2 Volt RMS/1KHz | <0.01% |
| Input Impedance | Adjustable 31 to 47k |
| Gain Level Options | Adjustable 38dB to 60dB |
| Power On usage | 10W |
| Power Off usage | 0.0W |
| Internally Set Operating Voltages | 100-120VAC or 230-240VAC 50/60 Hz |
| Size | 216 x 88 x 305mm |
| Weight | 4.5Kg |
Manufacturer Site
- Bel Canto
