Description

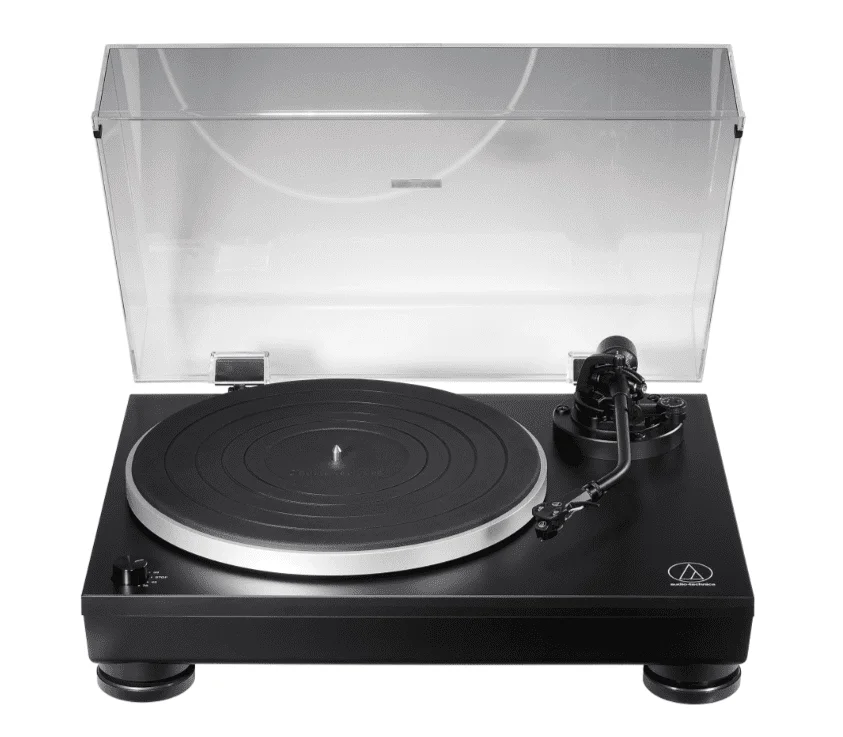

AT-LP5X Fully Manual Direct-Drive Turntable
The AT-LP5x turntable features a direct-drive, 3-speed (33-1/3/45/78 RPM) motor, MM/MC phono pre-amp and USB capability, all housed in a mass damped high-density polymer cabinet.
Turntable with High-Fidelity Heritage
Born of Audio-Technicas rich analogue heritage, the AT-LP5X incorporates a J-shaped tonearm that takes its inspiration from the classic A-T models of the 1960s and 70s.
Latest Technology, Contemporary Style
This next-generation LP5 turntable pushes the acclaimed performance of its predecessor to new heights, with upgraded features like the versatile AT-VM95E cartridge and a preamp gain switch to accommodate both moving magnet and moving coil cartridges.
Delivering Analogue Excellence for Over 60 Years
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-centurys worth of analogue expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.
Features:
- Direct-drive, low noise motor
- Fully manual operation with three speeds: 33-1/3, 45 and 78 RPM
- AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus
- Lightweight AT-HS6 headshell
- J-shaped tonearm, modeled after original Audio-Technica designs from the 1960s and 70s, are engineered to minimize tracking errors
- Switchable MM/MC built-in pre-amplifier and line enables connection to components with or without a dedicated phono input
- Anti-resonance, die-cast aluminum platter
- Heavy rubber damping mat for improved low-frequency reproduction
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Elegant matte black finish
- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, USB cable
- Included dust cover and mounting hardware
Specifications
| Type | 3-speed, fully manual operation |
|---|---|
| Motor | DC motor |
| Drive Method | Direct Drive |
| Speeds | 33-1/3 RPM, 45 RPM, 78 RPM |
| Turntable Platter | Die-cast aluminum |
| Starting Torque | >1.0 kgf.cm |
| Braking System | Electronic brake |
| Wow and Flutter | <0.2% WRMS (33 RPM) at 3 KHz |
| Signal-to-Noise Ratio | >50 dB |
| Output Level | PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE 250 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized MC: 56dB nominal, RIAA equalized |
| USB Function | A/D, – 16 bit 44.1 kHz or 48 kHz USB selectable; Computer interface – USB 2.0 compliant Windows 7 or above, MAC OS X or above |
| Power Supply Requirements | 100-240V AC, 50/60 Hz |
| Dimensions | 450.0 mm (17.72″) W x 352.0 mm (13.86″)D x 157.0 mm (6.18″)H |
| Weight | 7.3 kg (16.1 lbs.) |
| Accessories Included | AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus; AT-HS6 lightweight headshell; AC adapter ; dual RCA (male) to dual RCA (male) stereo cable; 45 RPM adapter; USB cable; dust cover with hinges. |
