Description
- Superb Condition
- Includes Manual
- Includes Mains Cable
- Includes Remote Control
What the manufacturer says :

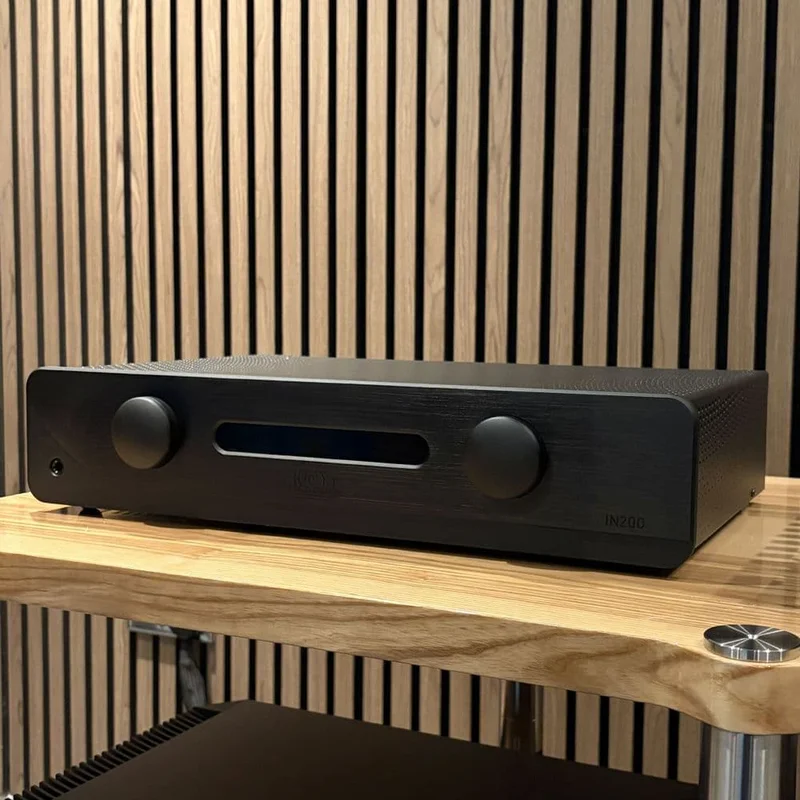

The integrated amp-preamp IN200 Signature is manufactured with the greatest care: we choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection goes through the design of proprietary ATOLL circuits in order to preserve the integrity of the most subtle musical signals.
- 8 mm brushed aluminium front panel.
- 2×120 W / 8Ω.
- 2 toroidal transformers of 340 VA chacun.
- Filter capacitors: 8×6800 μF high quality, low ESR specific for ATOLL.
- Specific low consumption 5 VA power supply for the digital stages.
- MOS-FET double push-pull power stage.
- 2 volume attenuators: 1 per channel to maintain the dual mono architecture.
- Shielded MKP Mundorf capacitors.
- Possibility to adjust and memorise the balance.
- Discrete component audio stages.
- MKP Technology Link Capacitors.
- High-performance heat sinks, direct thermal coupling.
- Double-sided circuit boards with nickel/gold finish.
- Polarization of output stages in class A/B.
- Thermal protection.
CONNECTIVITY
Inputs
5 Audio inputs (RCA): AUX (or optional P50 / P100 phono stage), CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS input (used as a power amplifier).
Outputs
2 Line preamp outputs (for bi-amplification or to connect a subwoofer).
1 Trigger output (12V).
Various
1 Headphone jack Ø 6,35 mm.
Internal wiring of loudspeaker outputs with the specific audio cable.
Gold-plated (RCA) connectors.
Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect, every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.
TECHNICAL DATA
Output power/8Ω: 2×120 W
Output power/4Ω: 2×200 W
Power supply: 2×340 VA
Total of capacitors: 62 853 µF
Number of inputs: 5+1 BY-PASS
Bandwidth: 5 Hz – 100 kHz
Rising time: 2,5 µs
Input impedance: 220 kΩ
Sensitivity: 350 mH
Signal/Noise ratio: 100 dB
Distortion at 1 kHz: 0,05% / 10 W
Dimensions: 440×309×95 mm
Weight: 12 Kg
