Description

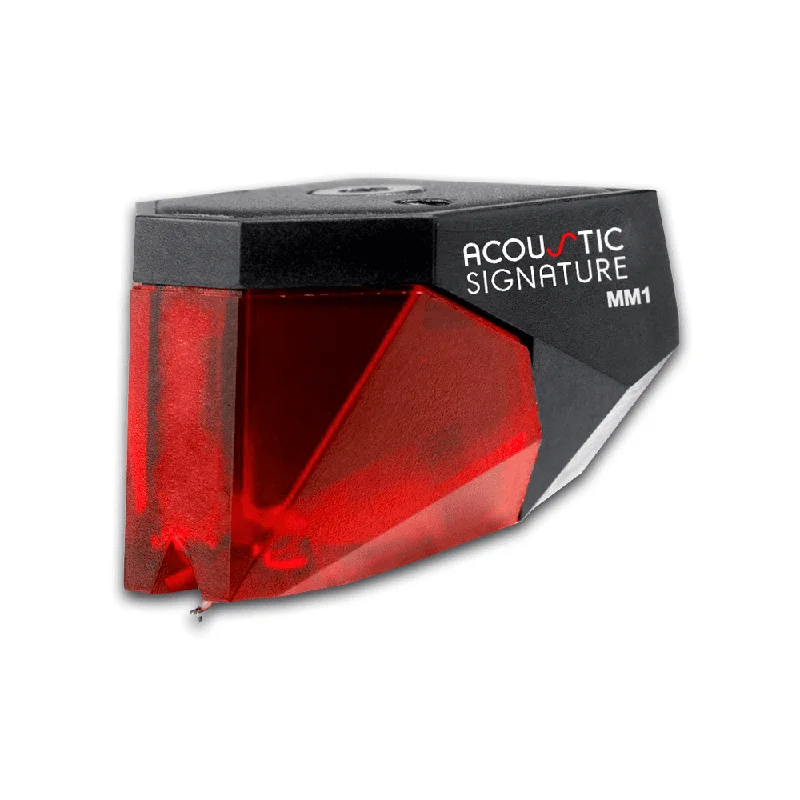

The MM Series Cartridges are produced by Ortofon and then re-engineered by Acoustic Signature. They are based on Ortofon’s 2m moving magnet models, and MC Quintet moving coil models. Acoustic Signature specially tune this series for interface with their own Turntables and Tonearms and represent even better bang-for-the-buck than their Ortofon counterparts.
Technical Specification
| Output voltage at 1 kHz, 5cm/sec. | 5.5 mV |
|---|---|
| Frequency range at -3 dB | 20-20.000 Hz |
| Tracking ability at 315 Hz (recommended tracking force) | 70 m |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Tracking force recommended | 1.8 g(18 mN) |
| Load resistance | 47 kOhm |
| Load capacitance | 150-300 pF |
